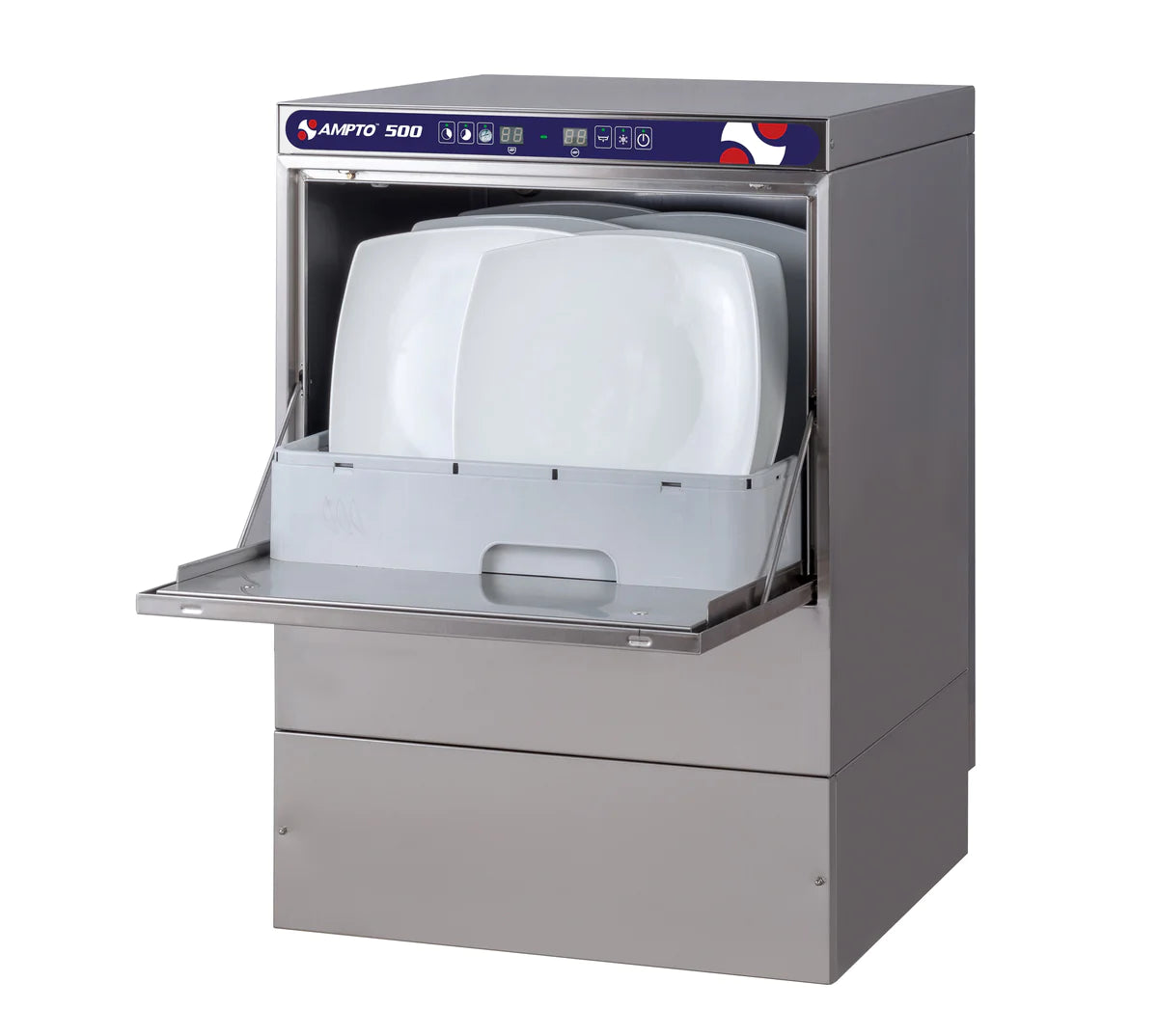

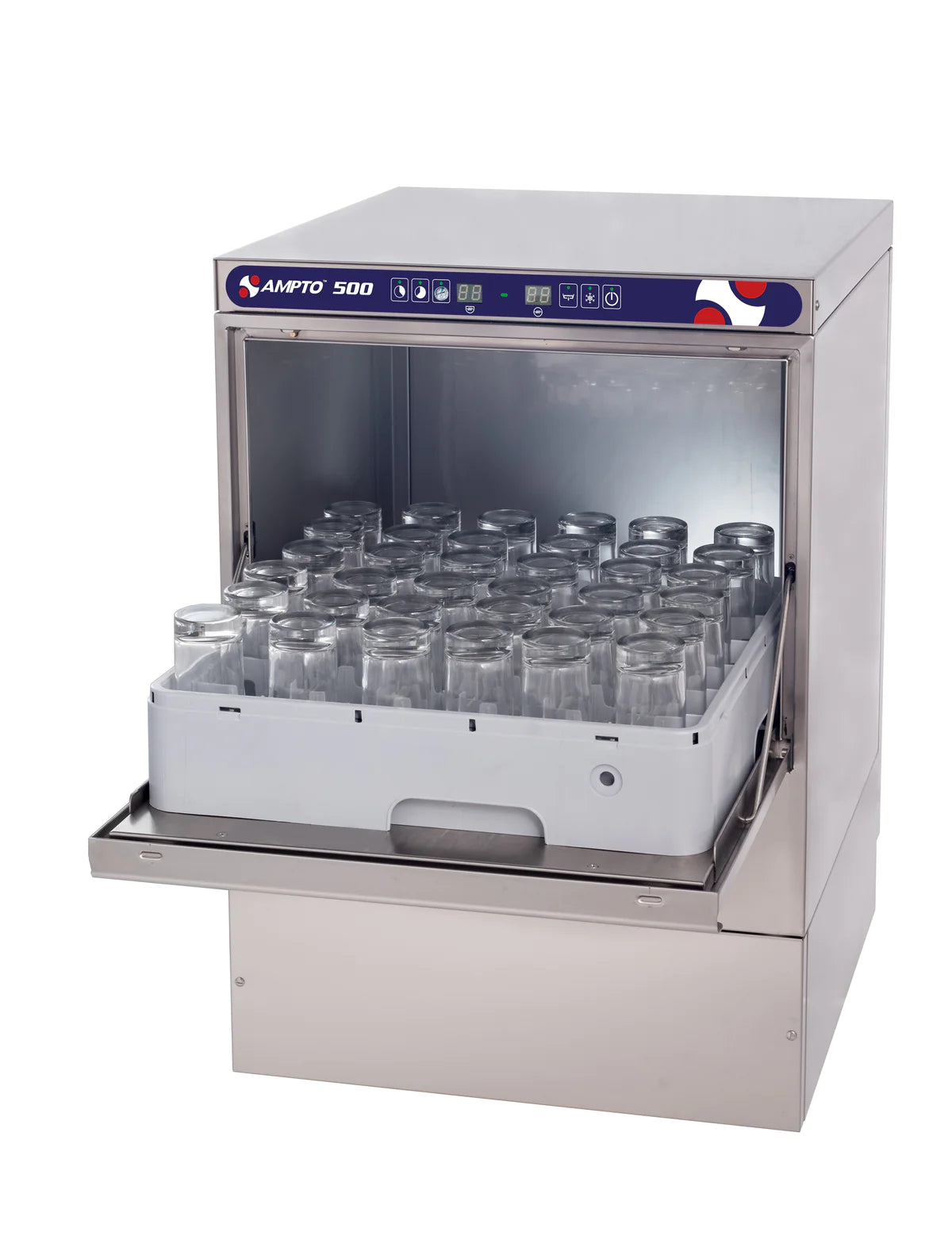

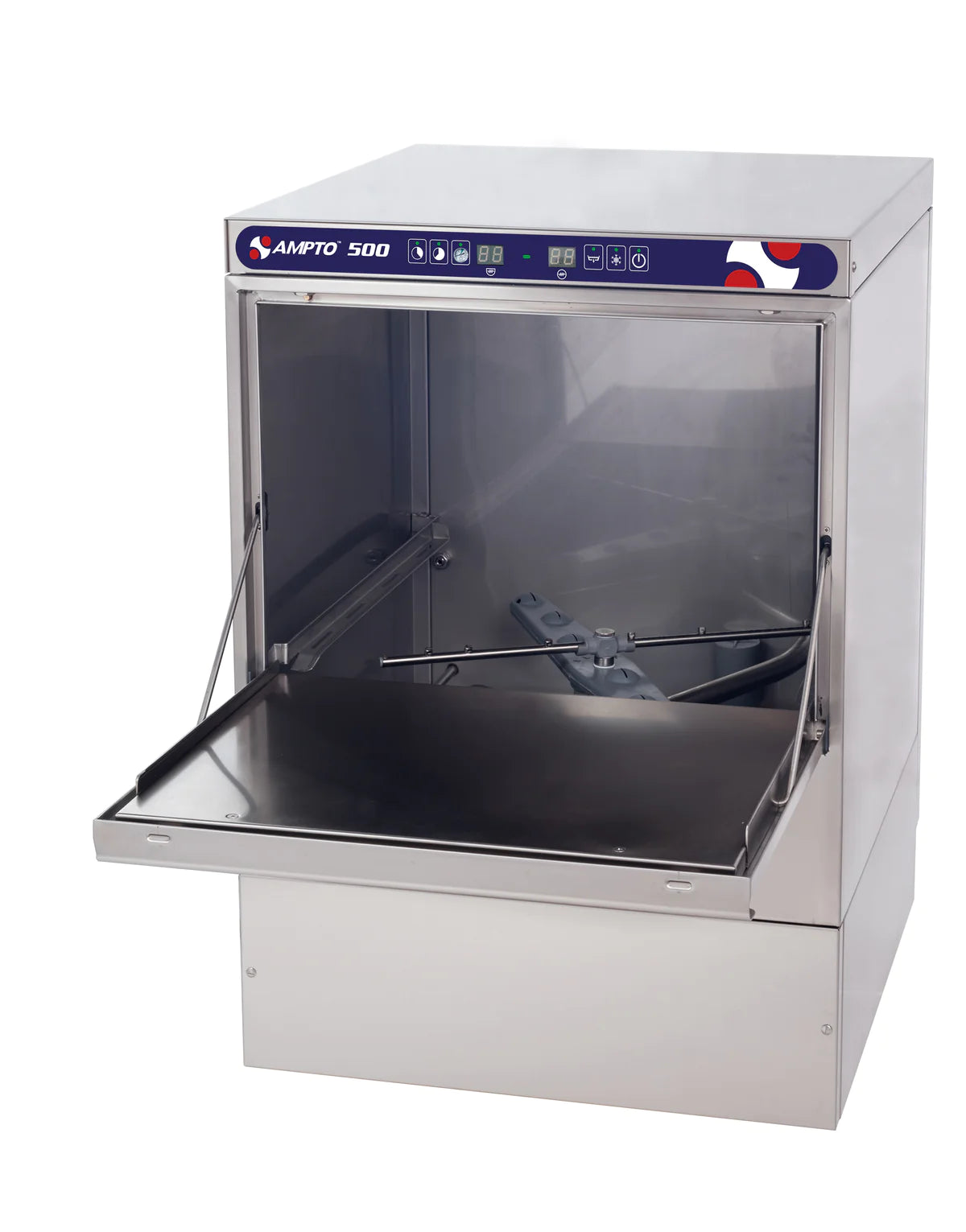

AMPTO Undercounter Dishwasher, door type, front loading, 23-5/8"W, (20/30 or 60) racks/hour capacity, high temp - 500
Undercounter Dishwasher, door type, front loading, 23-5/8"W, (20/30 or 60) racks/hour capacity, high temp, built-in detergent & rinse aid dispensers, digital controls, built-in 3.6 to 6.6 kW booster, pump drain, (3) operating cycles, 9.24 gal tank capacity, 1.58 gal boiler capacity, stainless steel exterior panels & interior, 3/4 HP, cETLus, ETL-Sanitation
FEATURES:
• Rinse with fresh water
• Guarantee rinse temperature
• Connection to minimum 55°C water supply
PARTS:
- NSF certified indicators for wash temperature, rinse temperature and rinse pressure
- 304 stainless steel body and handle, heavy duty & corrosion resistant
- Upper and lower wash/rinse arms with high temperature cycles
- 1 peg rack, 1 flat rack & 1 cutlery tray included
SPECIFICATIONS:
- BASKET SIZE 20” x 20”/ 500 x 500 mm
- POWER SUPPLY 208-240V / 60Hz / 1 Ph
- POWER 3.6 kW
- AMP 16 A
- WASH PUMP MOTOR 0.75 HP
WATER CONNECTION:
- FLOW PRESSURE 20 psi ± 5
- WATER CONSUMPTION / RACK 0.58 gal (2nd program)
- WATER CONSUMPTION / HOUR 11.0 gph
- WATER INLET CONNECTION 3/4”
- DRAINING CONNECTION 1.0”
CAPACITY:
- CAPACITY Booster tank: 6L, Wash tank: 35L
- HEATING ELEMENT Booster tank: 3 kW, Wash tank: 2.8 kW
- RACK / HOUR (1ST PROGRAM) 28
- RACK / HOUR (2ND PROGRAM) 19
- RACK / HOUR (3RD PROGRAM) 14
- WASH CYCLE 1 103 sec
- WASH CYCLE 2 223 sec
- WASH CYCLE 3 343 sec
- RINSE CYCLE 16 sec
WORKING TEMPERATURE:
- WASHING 78 °C / 172.4 °F
- RINSING 78 °C / 172.4 °F

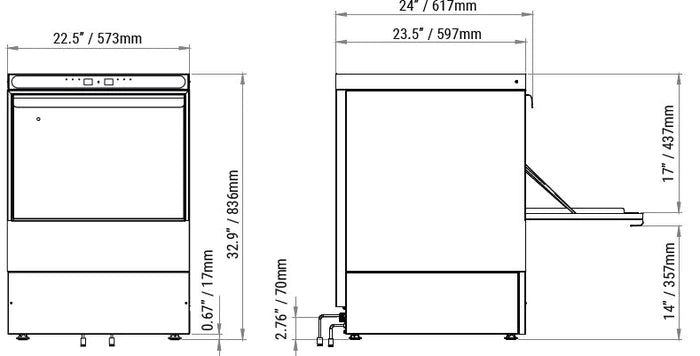

DIMENSIONS:
- DOOR CLEARANCE 14”/ 360 mm
- USEFUL DOOR OPENING 12.8” / 325 mm
- NET DIMENSIONS (WDH) 22.5” x 24” x 33” / 573 x 617 x 836 mm
- ( 38” / 966 mm with door open)
Plug and Wire (not included): Requires a certified electrician to install unit.
NOTE: Normal operation generates steam that may escape from the door. Materials like wood, laminate etc. are unsuitable for areas exposed to dishwasher steam and only stainless steel surfaces is recommended.
